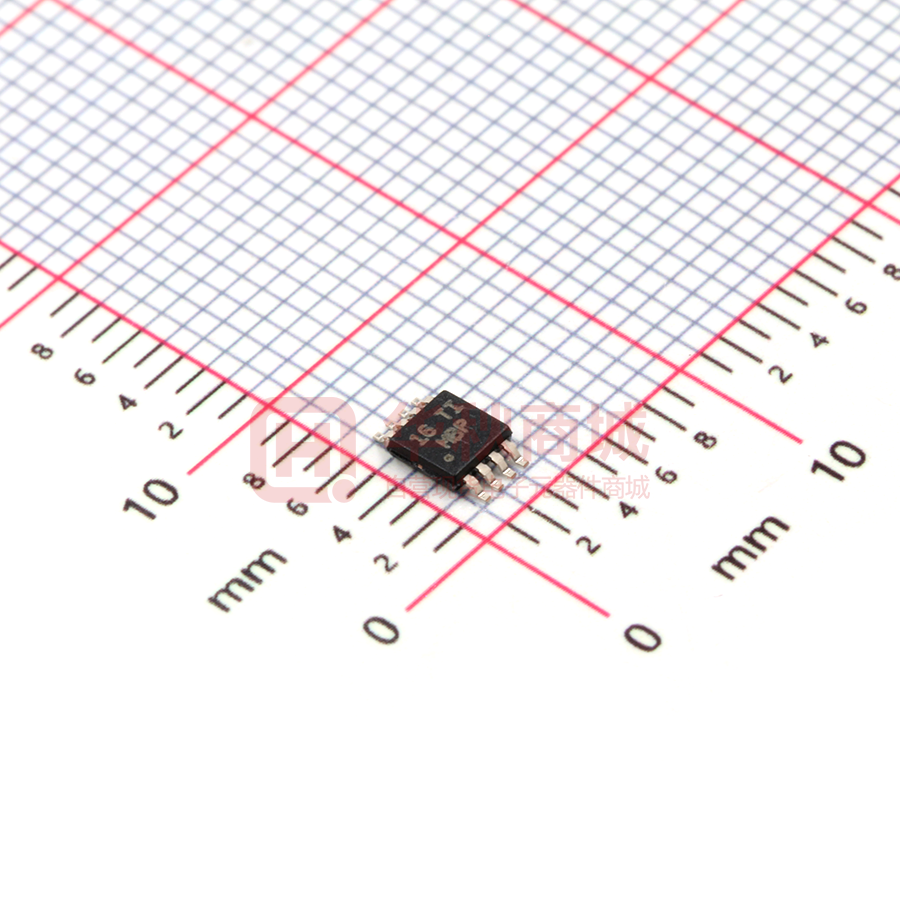

运算放大器 ST LM2904ST
- 商品详情
Single Supply Voltage (Min) | 3 V |
Mounting | Surface Mount |
Dual Supply Voltage (Max) | ?15 V |
Dual Supply Voltage (Typ) | ?3/?5/?9/?12 V |
Power Supply Requirement | Single/Dual |
Shut Down Feature | No |
Operating Temperature Classification | Automotive |
Package Type | MSOP |
Rail/Rail I/O Type | No |
Single Supply Voltage (Max) | 30 V |
Voltage Gain in dB | 100 dB |
Single Supply Voltage (Typ) | 5/9/12/15/18/24/28 V |
Operating Temp Range | -40C to 125C |
Input Bias Current | 150 nA |
Unity Gain Bandwidth Product | 1.1MHz |
Common Mode Rejection Ratio | 70 dB |
Pin Count | 8 |
Packaging | Tape and Reel |
Rad Hardened | No |
Input Offset Voltage | 7 mV |
Dual Supply Voltage (Min) | ?1.5 V |
Slew Rate | 0.6 V/us |
Technology | Bipolar |
Number of Elements | 2 |
商品介绍
Op Amp Dual Low Power Amplifier ±15V/30V 8-Pin Mini-SO T/R
标准包装
标准包装是从制造商/代理商处获得的最小包装规格。所以最小订货量可能会小于制造商的标准包装的数量。当产品分解成较小数量时，包装类型（即卷、管、盘）可能会发生变化，以实际包装交货为准。
